MT057C4 -Carbon Fiber Video Tripod

Made after 2010-01-06

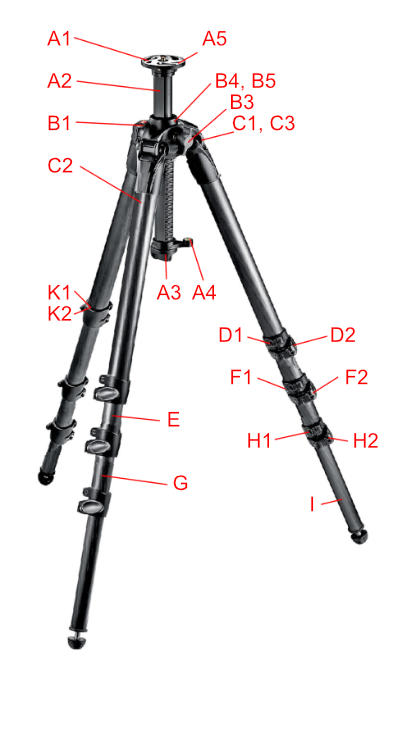

MANFROTTO CARBON FIBER MT057C4


A1 Center Column Top Plate
A2 Smooth Center Column
A3 Center Column Plug
A4 Side Bubble Level-Single
A4 Side Bubble Level-10 pack
A5 Grub Screw

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate
B3 Center Column Lock Screw
B4 Center Column Guide Shim
B5 Center Column Guide
B6 Main Casting Top Plate Screws - 3 pack
B7 Casting Plug
B8 Main Casting Bottom Plate Screw

C1 Leg Position button
C2 Upper Leg Tube
C3 Leg Butterfly Bushing

D1 Upper Leg Clamp Assy
D2 Upper Leg Clamp Lever
D3 Clamp Screw
D4 T25 Wrench

E Upper Middle Leg Tube

F1 Lower Leg Clamp Assy
F2 Lower Leg Clamp Lever
F3 Clamp Screw
F4 T25 Wrench

G Lower Middle Leg Tube

H1 Lower Leg Clamp Assy
H2 Lower Leg Clamp Lever
H3 Clamp Screw
H4 T25 Wrench

I Bottom Leg Tube with Foot

J Cable Clip & Wrench
K1 Leg Sleeves
(to be mounted on tubes)
K2 Leg Bushings
(to be mounted on locking collars)

L T25 Torx Wrench
