MT190GOC4TB - Black Aluminum Tripod

Made after 2017-05-09
For serial numbers from E0205001

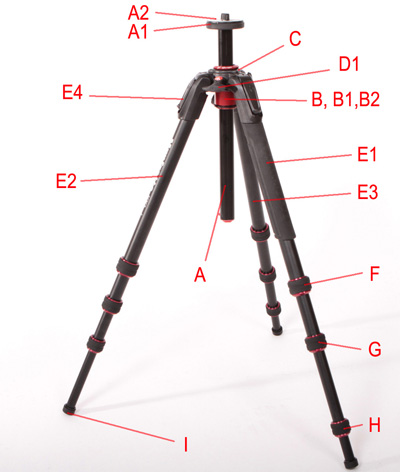

Manfrotto MT190GOA4 tripod

A Center Column Assy
A1 Rubber Bumper
A2 Grub Screw

B PRO Center Column Pivot Assy
B1 Column Pivot Ring
B2 Friction Ring
B3 Pro Tilt Lever

C Main Casting Top Plate
C1 Top Plate Screws & Nuts - set of 3

D Main Casting Bottom Plate
D1 Center Column Lock Knob
D2 Rubber Cap
D3 Accessory Nut
D4 Main Casting Screws - 3 pack
D5 Torx Wrench
D6 Strap Loop
D7 Center Column Lock Shoe

E1 Leg Assy & Brace With Rubber Grip
E2 Leg Assy & Brace With Endgravings
E3 Leg Assy & Brace Only (no rubber grip)
E4 Leg Extender Release Button

F Upper Leg Sleeves -3 pack
G Middle Leg Sleeves -3 pack
H Lower Leg Sleeves -3 pack

Leg Tightening Collars Are Not Available Individually

I Rubber Feet (set of 3)
I Spike Feet (set of 3)
I Suction Cup Feet (set of 3)

J T25 Torx Wrench

Editor note: These parts are not Compatible with all versions of the MT190GO tripods. The Leg Tubes on this version are round and not intgerchangeable with the later D tube versions. As are the tightening collars, they are a different diameter. Click on the numbered link to see the actual part picture.
