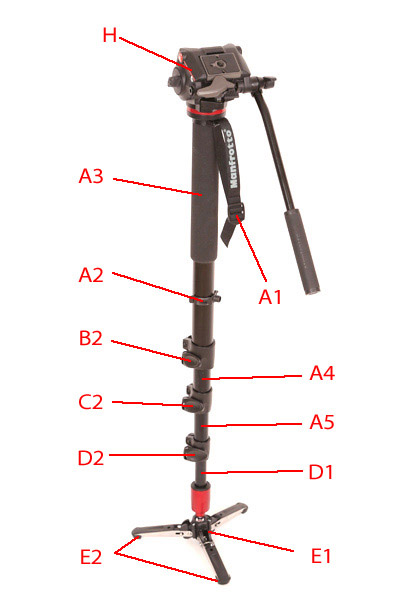

MVM450A Video Monopod with Head

A1 Strap
A2 Cable Clip
A3 Top Tube & Mount (not a stock item)
A4 Upper Middle Tube
A5 Middle Lower Tube

B1 Locking Collar
B2 Upper Locking Snap Lever
B3 T25 Wrench

C1 Middle Locking Clamp Assy
C2 Middle Snap Lock Lever
C3 T25 Wrench
C4 Cable Clip (not shown)

D1 Bottom Leg Tube and FLuid Cartridge Assy
D2 Bottlom Snap Lock Lever
D3 T25 Wrench

E1 Foot Assembly
E2 Middle Snap Lock LeverRubber Pads

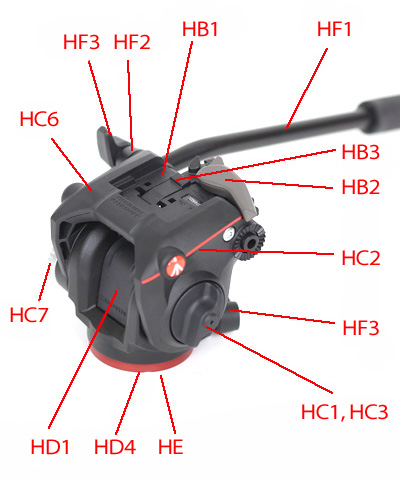

H Replacement Pan Head

HA1 Quick Release 1/4-20 Screw
HA2 Quick Release 3/8 Screw - Replaced by 200PL-14
HA3 Quick Release 1/4 Anti-Rotate
HA4 Quick Release 3/8 Anti-Rotate
HA5 1/4 Thumbscrew
HA6 3/8 Thumbscrew

HB1 QR Plate Receiver Assembly
HB2 QR Thumb Lever
HB3 QR Safety Catch-Single
HB3 QR Safety Catch-3 Pack

HC1 Tilt Tension Knob Assy (not a stock item)
HC2 Left Side Body Assy (not a stock item)
HC3 Fluid Disk
HC4 Right Side Disk (not a stock item)
HC5 Right Side Flange (not a stock item)
HC6 Right Side Body Assy (not a stock item)
HC7 Tension Knob (not a stock item)

HD1 Main Body Casting (not a stock item)
HD3 Side Bubble Level-Single
HD3 Side Bubble Level-10 pack
HD3 Pan Lock Knob (not a stock item)
HD4 Fluid Disk

HE Base (not a stock item)

HF1 Pan Handle
HF2 Pan Handle Clamp
HF3 Pan Handle Clamp Knob


Editor note: Click on the numbered link to see the actual part picture. Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown. Click on the numbered link to see the actual part picture. Links will turn red on "mouse-over' and blue after they have been visited.

See MVM450A
Manufacturers Parts List
