350 MVB Version 4 Tripod

Made after 2005-05-10

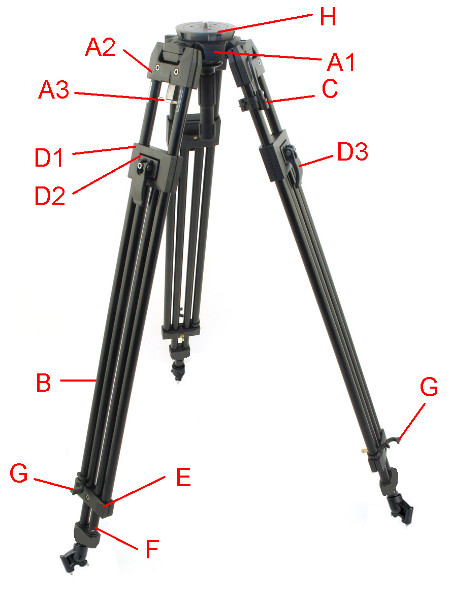

350MVB VERSION 4
A1 Main Casting
A2 Slider Assy
A3 Leg Brace Assy
A4 Leg Pivot

B Upper Leg

C Clip & Wrench

D1 Leg Slider Assy
D2 Slider Clamp (not a stock item)
D3 Slider Locking Lever

E Leg Yoke

F1 Lower Leg (not a stock item)
F2 Rubber Foot Cover
F3 USED Rubber Padded Foot
F4 Rubber Padded Feet, set of 3

G Leg Clip

H Ball Assembly 100mm
Click Here for parts for 500Ball


Editor note: There is no difference between version 4 and 5 except a name change on part A4. This tripod uses the same parts as 350B, except the leg tubes are silver instead of black.
