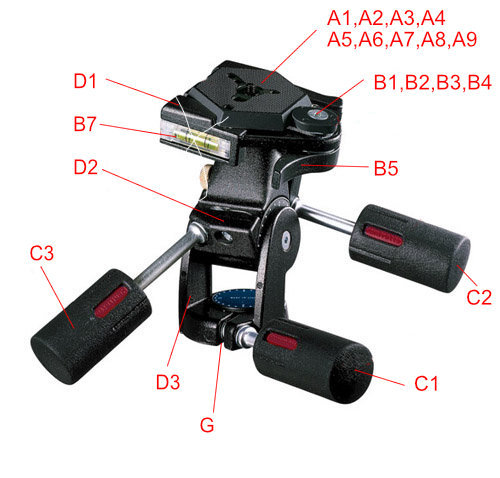

029MK2 version 4
3 way pan head with hexagonal style Quick release.
Made before 1993-01-25
Also Called Bogen 3047 version 4
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.
A1 Quick Release Plate with 1/4-20 Screw
A2 Quick Release Plate with 3/8 Screw
A3 Non Rotate QR Plate with 1/4-20 Screw
A4 VHS Quick Release Plate with 1/4 Screw
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew
A7 Flat Bottom Plate with 1/4 Screw
A8 Flat Bottom Plate with 3/8 Screw
A9 1/4 Low Profile Screw
B1 USED Locking Cam
B2 USED Return Spring
B3 USED Pivot Screw
B4 USED QR Locking Pin
B5 USED QR Release Thumb Lever
B6 QR Safety Tab
B7 Bubble Level vial
B7 Bubble Level vial AND Plastic Assy
C Replacement Handle - all sizes
C1 USED Short Handle
C2 USED Middle Handle
C3 USED Long Handle
C3 USED Handle Set
D1 QR Receiver Plate
D2 Tilt Casting
D3 Main Casting
G Tripod Base
Editor note:This is version 4, some versions had a Quick Release Safety Lock like vers 3. The bubble levels are different from vers 3 to 4. See Part B7. Only the Quick Release Plates are interchangeable between the different versions.
Parts marked as USED are reconditioned and Only available as USED. Where there is a dual listing the one not showing USED is the NEW part.
Click on the numbered link to see the actual part picture.
