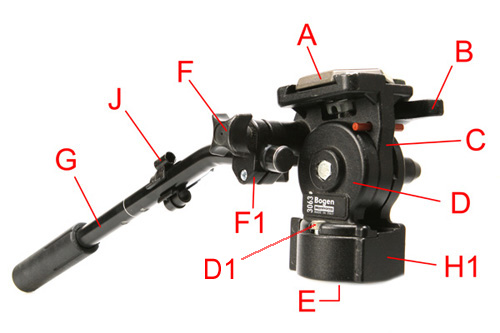

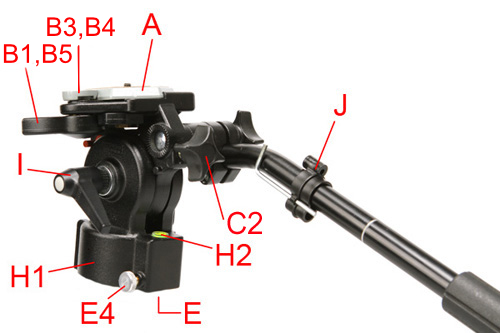

Manfrotto 136 Version 9 Video Head
Made after 1998-06-04
Also caled Bogen 3063
Version 9 parts B1, B4 and B5 are different from Version 8
USED parts are marked as USED, parts not marked as USED are new.
A1 1/4 Quick Release Plate
A2 3/8 Quick Release Plate
A3 1/4 Architectural Quick Release Plate
A4 1/4 Video Quick Release Plate
A5 1/4 Low Profile Quick Release Plate
A5 3/8 Low Profile Quick Release Plate
A6 1/4 QR Replacement Screw
A7 3/8 QR Replacement Screw
B1 Quick Release Thumb Lever
B2 QR Release Return Spring
B3 QR Cam
B4 QR Safety Pin
B5 QR Safety Lock Button
B6 QR Release Pivot Screw
C QR Receiver Plate & Tilt Assembly
C2 Tilt Screw
Also available on part C assy)
D Side Plate
D1 Side Plate Screw
D1 USED Side Plate Screw
E1 Pan Base Plate
E2 Pan Base Clamp
E3 Pan Fluid Disk
E4 Pan Lock Screw
E5 Screw and Bearings
E6 Bearings Only
F Pan Bar Clamp Knob
F1 Pan Bar Clamp
G USED Black Pan Bar Assembly
G USED Silver Pan Bar Assembly
H1 Main Housing
H2 Bubble Level
I Main Pan Control
I USED Main Pan Control
I Replacement Main Pan Control
J Cable Clamp
Editor note: Click on the numbered link to see the actual part picture. This is the Only verson we have a parts list for, other versions may be compatible but we cannot confirm it.
