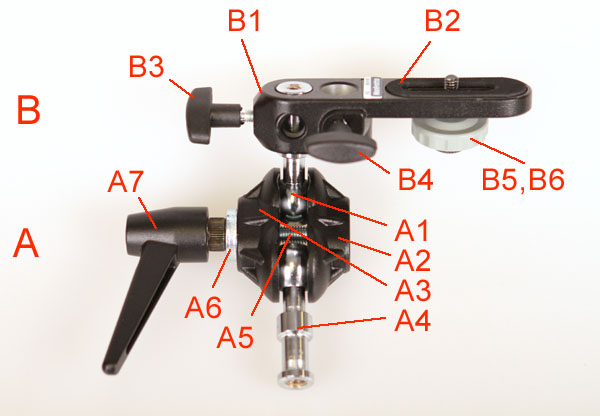

155 Double Ball Joint Head with Camera Bracket
Made after 2000-05-30
Also callled Bogen 2916
A 155BKL Double BallJoint Head Only
A1 3/8 female screw Ball
A2 Side Plate
A3 Side Plate with Hole
A4 1/4 Female Screw Ball
A5 Bolt & Bearing
A6 Washer
A7 Ball Lock Knob
B 155BKT Camera Bracket ASSY
Replaced by the 143BKT
B1 Main Casting
B2 Rubber Pad
B3 Back Knob
B4 Side Knob
B5 1/4 Camera Screw
B6 3/8 Camera Screw
Editor note: All versions of this item are interchangeable. Click on the numbered link to see the actual part picture.
A1 3/8 female screw Ball
A2 Side Plate
A3 Side Plate with Hole
A4 1/4 Female Screw Ball
A5 Bolt & Bearing
A6 Washer
A7 Ball Lock Knob
B 155BKT Camera Bracket ASSY
Replaced by the 143BKT
B1 Main Casting
B2 Rubber Pad
B3 Back Knob
B4 Side Knob
B5 1/4 Camera Screw
B6 3/8 Camera Screw
Editor note: All versions of this item are interchangeable. Click on the numbered link to see the actual part picture.
