Manfrotto 160 Head
Made about 2005-05-10
Also called Manfrotto 3057

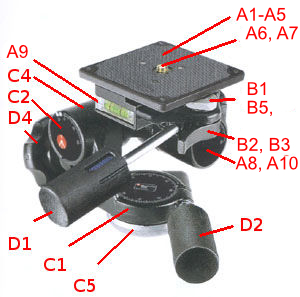

USED parts are marked as USED, parts not marked as USED are new.
A1 USED Original 030L Quick Release Plate
A2 Quick Release Plate with 1/4-20 Screw
A3 Quick Release Plate with 3/8 Screw
A4 Non Rotate QR Plate with 1/4-20 Screw
A5 VHS Quick Release Plate with 1/4 Screw
A6 3/8 Repl Screw
A7 1/4 Repl Screw
A8 USED Top Plate
A9 Bubble Level
A10 USED Position Dial
B1 Locking Cam
B2 Cam Spring
B3 Thumb Lever
B3 USED Thumb Lever
B4 Rotation Screw
B5 Safety Pin
B5 USED Safety Pin
B6 Safety Latch
C1 USED Main Casting
C2 USED Horizon Dial
C3 USED Tension Bushing
C4 USED Internal Pitch
C5 USED Base
C Pan Dial
D1 USED Tilt Knob (not available separately)
D2 USED Cylindrical Pan Knob
D3 USED Conical Knob Set
Parts D1 and D2
D4 Used Large Round Knob
Editor note: All parts are interchangeable between versions EXCEPT the versions made before 1998 may not have parts: A9, B5 and B6. Most other parts are thought to beinterchangeable. Parts marked as USED are reconditioned and Only available as USED.
Click on the numbered link to see the actual part picture.
