196 Two Section Articulated Arm

Made after 1993-07-23


143BKT Camera Bracket 196 articulated arm

196B-2 2 Section Articulated Arm
(replacement for original 196)

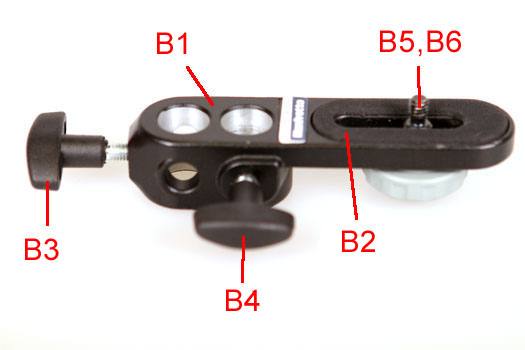

143BKT Camera Bracket

B1 Main Casting
B2 Rubber Pad
B3 Back Knob
B4 Side Knob
B5 1/4 Camera Screw
B6 3/8 Camera Screw

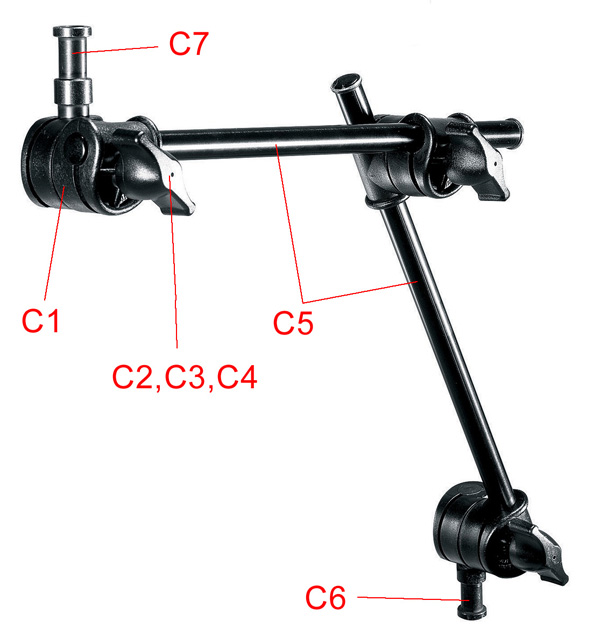

C1 Upper Clamp Assembly (not available)
C2 USED Clamp Knob
C2 Repl Clamp Knob
C3 Washer
C4 Clamp Screw (not available)
C5 Poles (not available)
C6 3/8 Clamping Stud
C7 1/4 Clamping Stud


Editor note: All versions of this item are interchangeable. Parts C1 and C5 have different part numbers from other 196 Arm versions and it is not known if they are ingterchangeable. Click on the numbered link to see the actual part picture.
