244KJP Variable Friction Arm with 143BKT Bracket and 155 Double Ball Head
Made after 1996-11-20

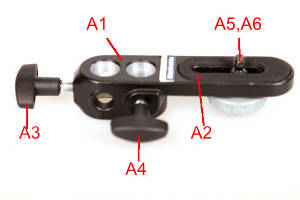

A 143BKT Bracket, 155 Double Ball Head
A1 Main Casting
A2 Rubber Pad
A3 Back Knob
A4 Side Knob
A5 1/4 Camera Screw
A6 3/8 Camera Screw

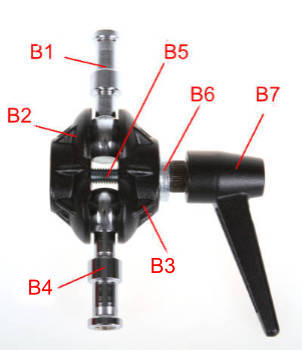

B 155BKL Double BallJoint Head
B1 3/8 female screw Ball
B2 Side Plate
B3 Side Plate with Hole
B4 1/4 Female Screw Ball
B5 Bolt & Bearing
B6 Washer
B7 Ball Lock Knob
C 3/8 To 1/4 Adapter
D Complete 244KJP Variable Friction Arm
D1 1/4 Stud & ArmAssy
D2 Spacers
D3 Bolt & Bearings
D4 Internal Tension Bearing
D5 Tension Knob
D6 3/8 Stud & Arm Assy
D7 1/4 Stud
D8 3/8 Stud
D9 Ball Bearing Set

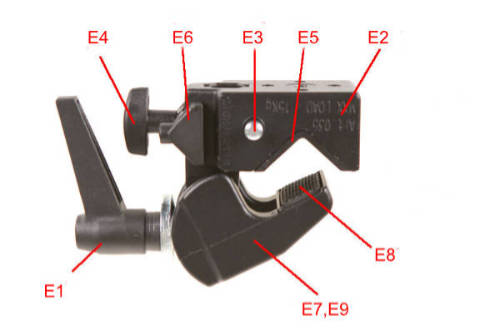

E Complete Super Clamp without Stud
E1 Lock Knob
E2 Bottom Jaw
E3 Safety Pin
E4 Accessory Lock Screw
E5 Rubber Pad - single
E5 Rubber Pad - 5 pack
E6 Plastic Wedge
D6 Plastic Wedge - 4 pack
E7 Upper Jaw
E8 Rubber Pad
E9 Return Spring
Editor note: All versions of this item are interchangeable. Click on the numbered link to see the actual part picture.
