560BALLSH Video Ball

60mm Ball with 3/8 Stud
Made about 2015-04-23

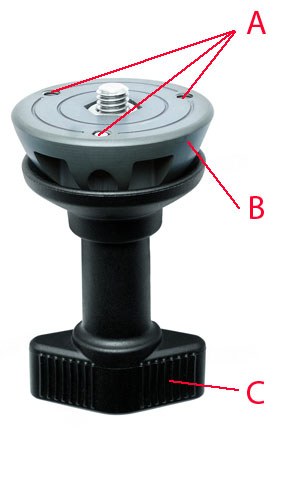

Manfrotto 560ballsh parts

560BALLSH Complete Assembly

A Grub Screw Single
A Grub Screw 5 Pack
B Ball Assy
B1 Accessory Nut (requires 2)
C Tightening Handle Assy


Find other ball levelers here:
500Ball500BALL100mm standard ball
500Ball500BALLSH 100mm short handle
500Ball520BALL 75mm standard ball
520ballsh520BALLSH 75mm short handle


The 560BALLSH fits the following Manfrotto tripods: 755CX3, 755XB, MVT502AM or other video tripods that have a 60mm bowl like Benro KH25N, KN26NL Editor note: No other versons are known. Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown. Click on the link to see the actual part picture.





Bowl Adapter Correct Fit Correct Bowl Wrong Tripod

Bowl Adapters can make almost any flat bottomed head fit on a video tripod. The Bowl is in different sizes:60mm, 75mm and 100mm widths. The bowl should fit just above the bowl opening so it can rotate and have room to "level" the head. If it fits into the head, it is the wrong size. Tripod Bowl OPening

Heads with bowls already made onto the bottom MUST be matched to a tripod that is sized for the corret bowl size. You cannot put bowl heads onto center column tipods; and there is no adapter to make a center column tripod accept a bowl head.
