520BALL Video Ball

75mm with 3/8 Stud
Made about 1997-02-20

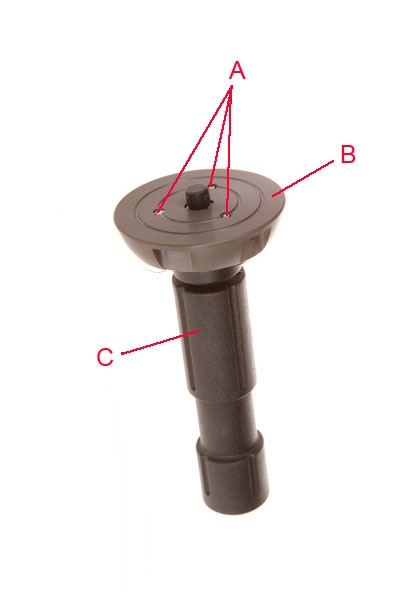

A Grub Screw Single
A Grub Screw 5 Pack

B Ball Assy
B1 Accessory Nut (requires 2)

C Tightening Handle Assy
C USED Tightening Handle Assy



Find other ball levelers here:
500Ball500BALL100mm standard ball
500Ball500BALLSH 100mm short handle
500Ball520BALL 75mm standard ball
520ballsh520BALLSH 75mm short handle
520ballsh560BALLSH 60mm standard ball

Editor note: Click on the numbered link to see the actual part picture.

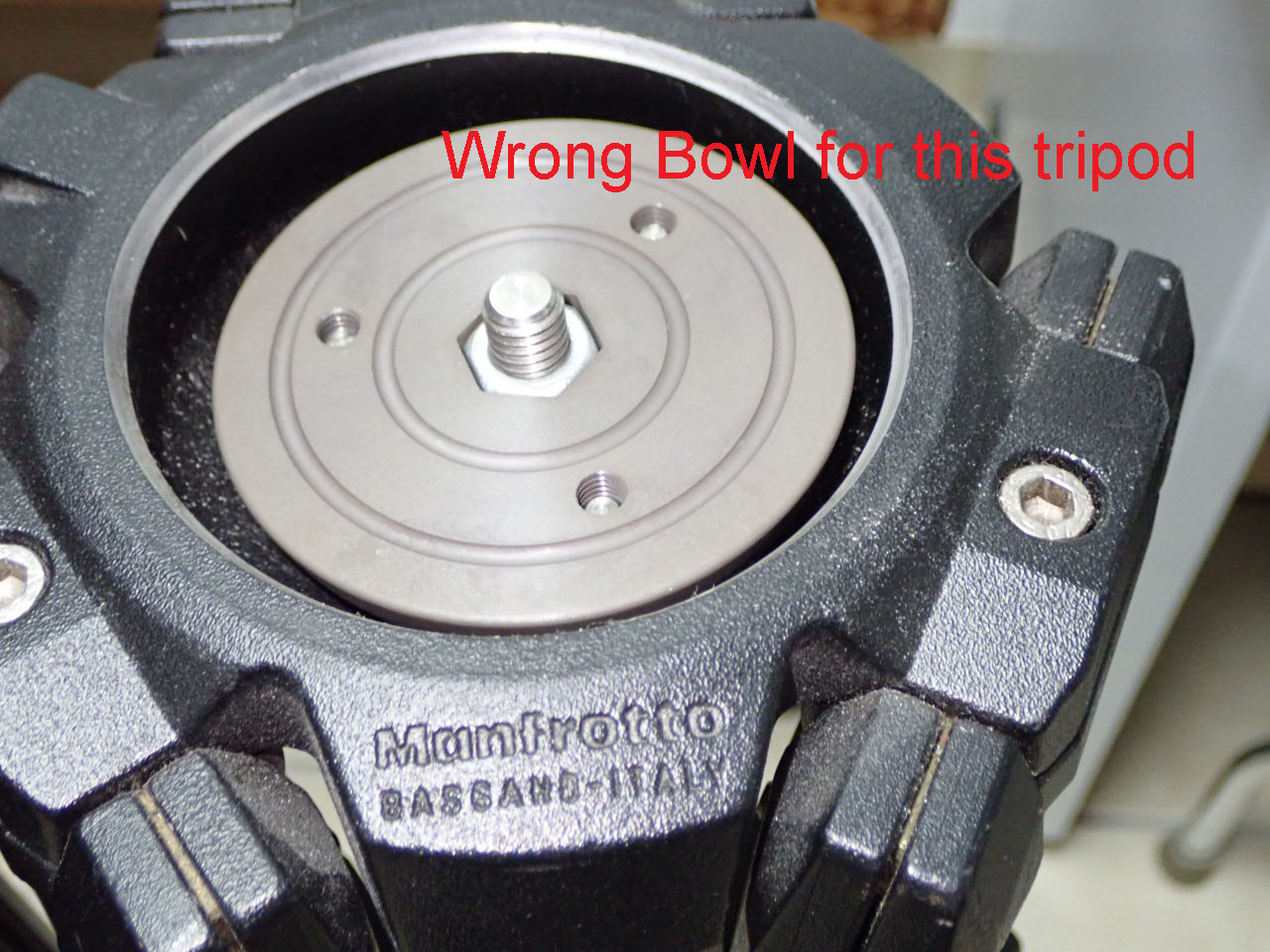

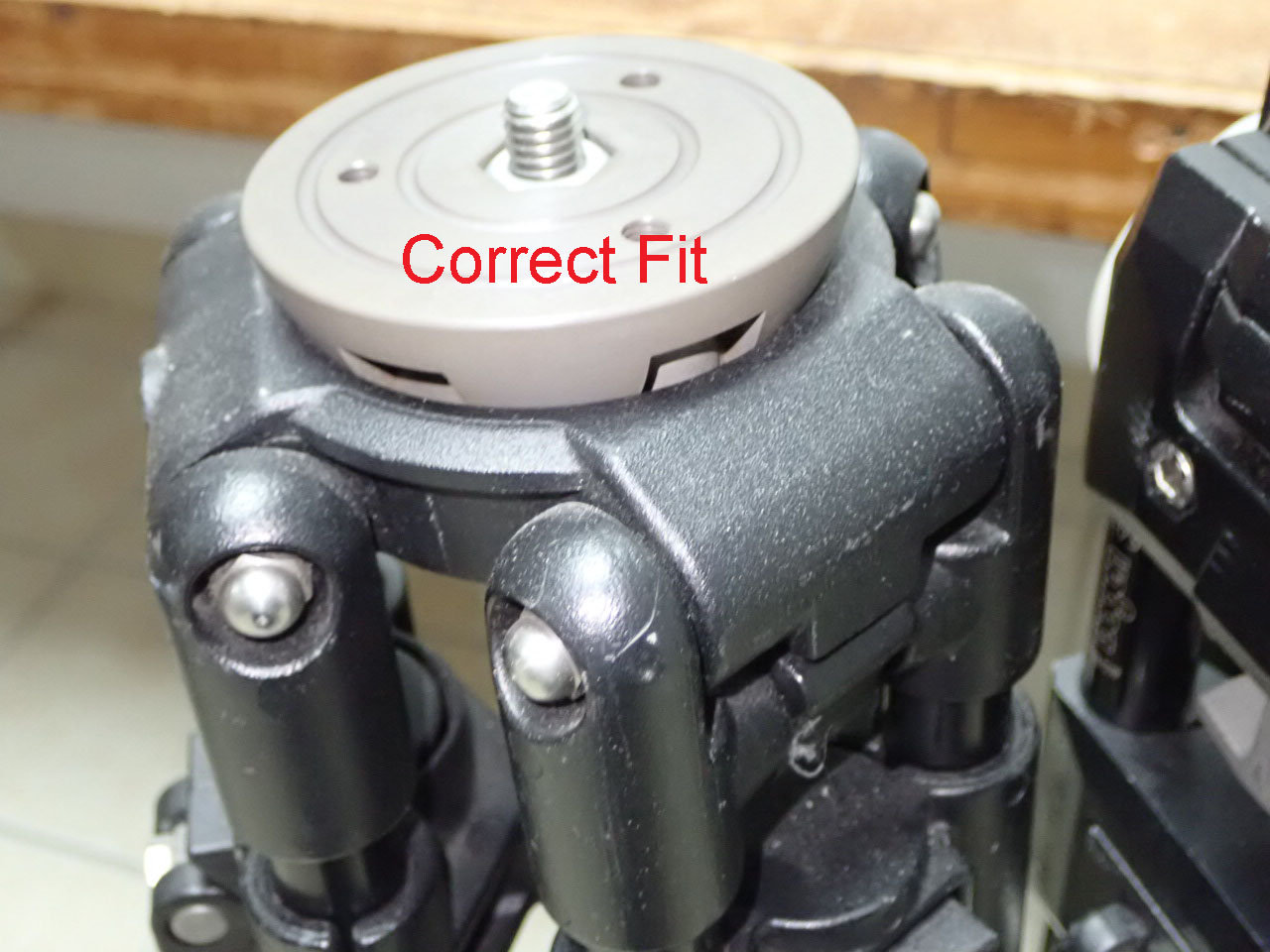

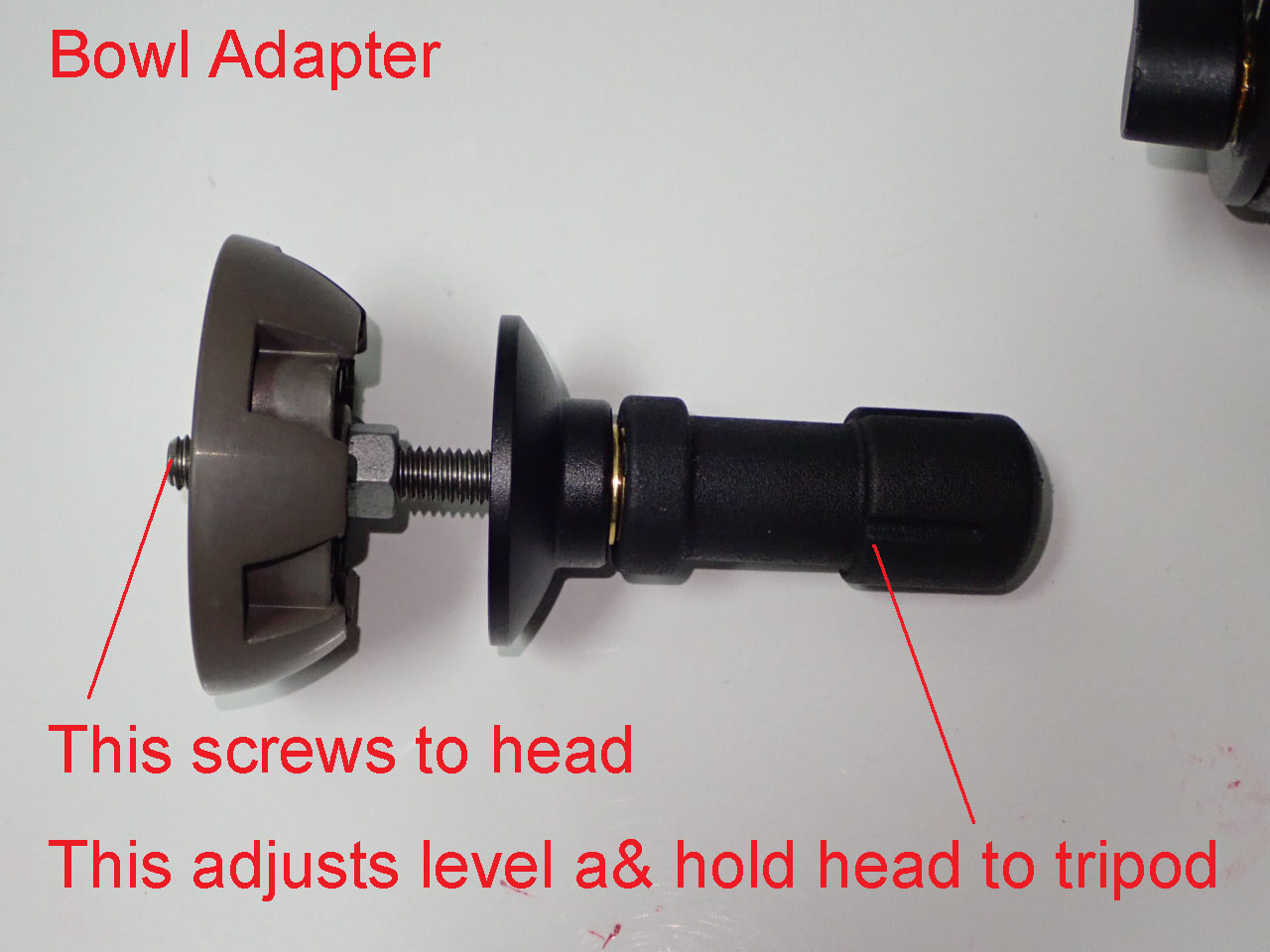

Bowl Adapter Correct Fit Correct Bowl Wrong Tripod

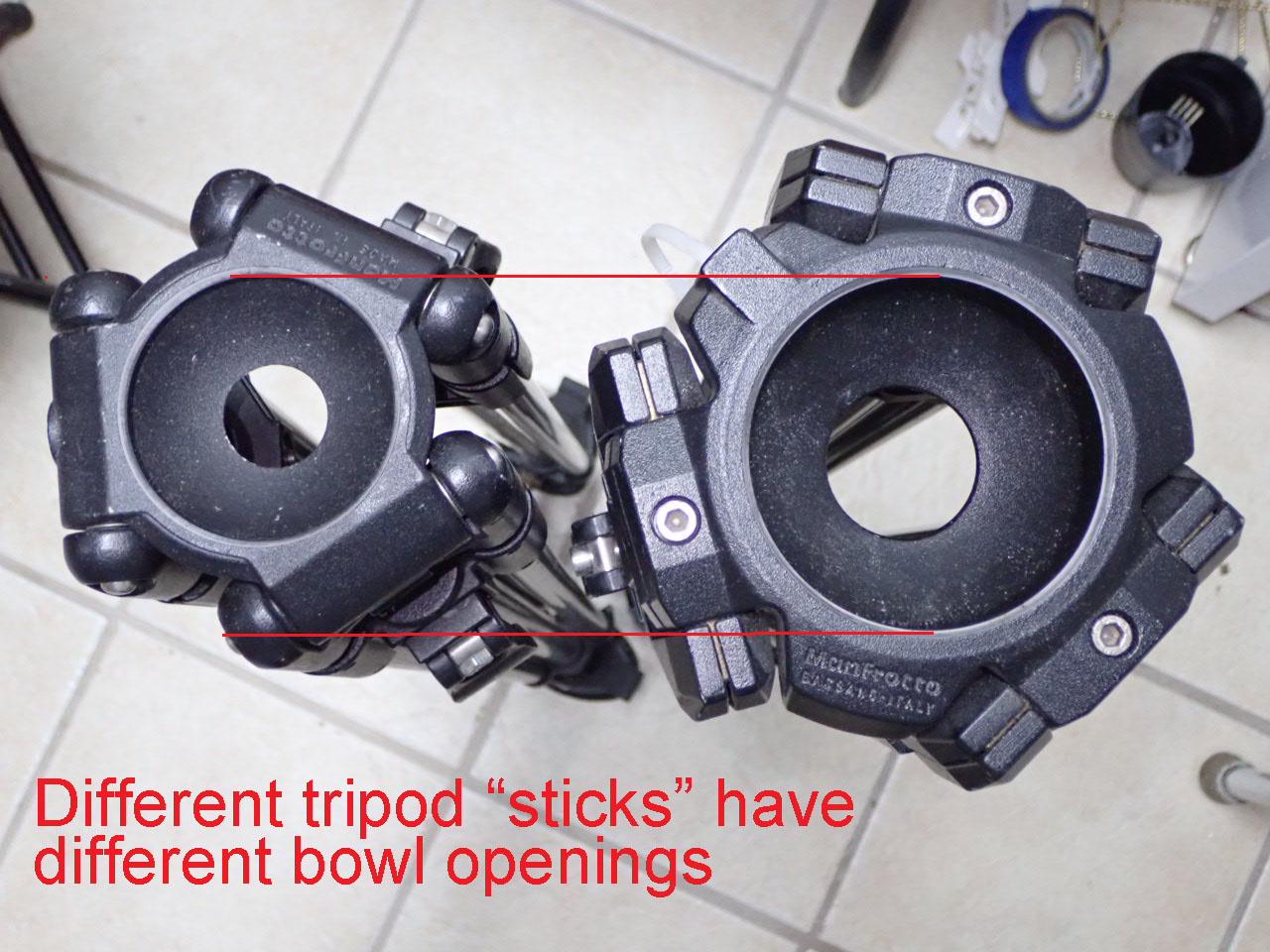

Bowl Adapters can make almost any flat bottomed head fit on a video tripod. The Bowl is in different sizes:60mm, 75mm and 100mm widths. The bowl should fit just above the bowl opening so it can rotate and have room to "level" the head. If it fits into the head, it is the wrong size. Tripod Bowl OPening

Heads with bowls already made onto the bottom MUST be matched to a tripod that is sized for the corret bowl size. You cannot put bowl heads onto center column tipods; and there is no adapter to make a center column tripod accept a bowl head.
