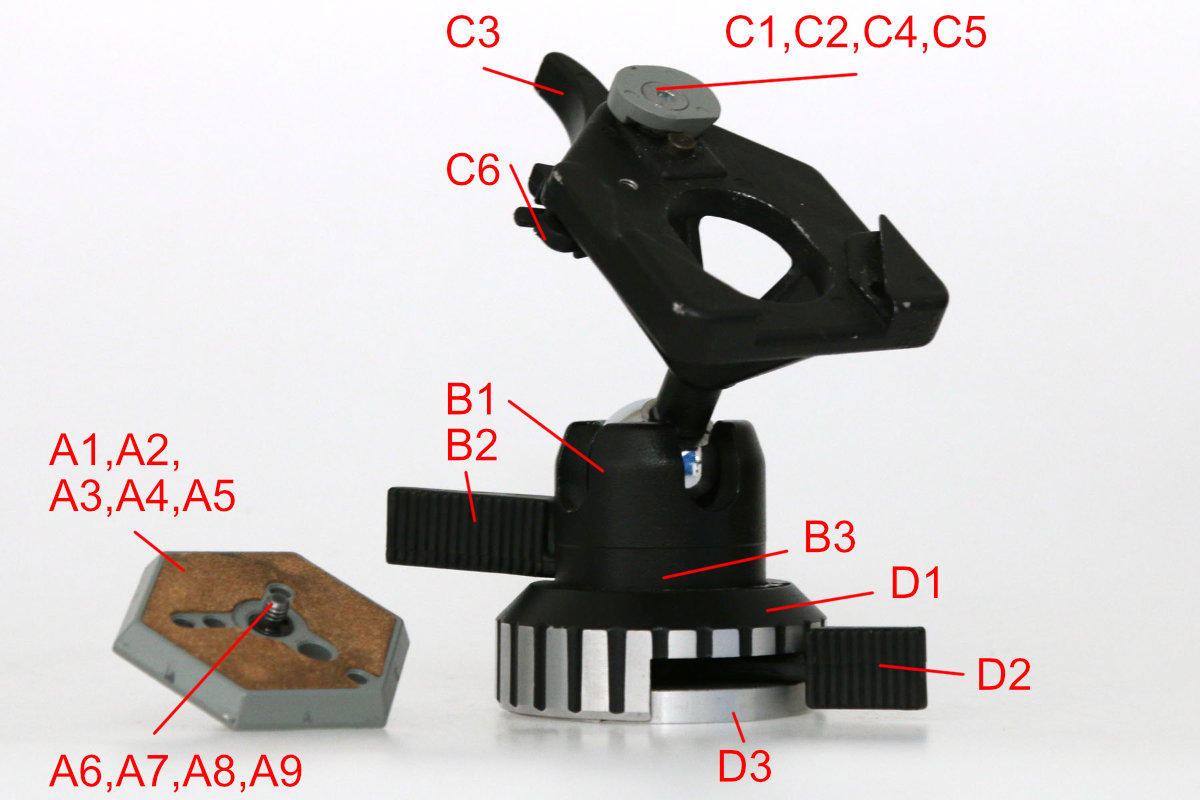

Manfrotto 168 QR Ball Head All versions
Made after 1995-11-13
Also called Bogen 3055
This Quick Release Ball Head uses the Hexagonal quick release plate. USED parts are marked as USED, parts not marked as USED are new.
A1 1/4 Quick Release Plate
A2 3/8 Quick Release Plate
A3 1/4 Architectural Quick Release Plate
A4 1/4 Video Quick Release Plate
A5 1/4 Low Profile Quick Release Plate
A5 3/8 Low Profile Quick Release Plate
A6 1/4 QR Replacement Screw
A7 3/8 QR Replacement Screw
A8 1/4 Low Profile Flat Bottom Screw
A9 3/8 Low Profile Flat Bottom Screw
B1 QR Receiver & Ball Assy
B2 USED Ball Locking Lever
B3 Ball Locking Cam
C1 USED QR Locking Cam
C2 Return QR Spring
C3 USED QR Thumb Lever
C4 USED QR Locking Pin
C5 USED QR Pivot Screw
C6 QR Safety Latch
D1 Main Casting
D2 USED Pan Lock Lever
D3 Tripod Base
Editors Notes: Version 4 and 5 are mostly interchangeable. Version 5 which has a QR safety latch C6 added to the unit. The 168 head is mostly the same as the 168WOB head. The main difference is the 168WOD lacks all the D parts from the 168. We do not have any information or parts lists for any other Versions. Please check parts carefully for match before ordering.
