Manfrotto 168WOB QR Ball Head All versions
Made after 2000-06-09
Also called Bogen 3055S
This Quick Release Ball Head uses the Hexagonal quick release plate. Thes head if different from the 168 head. USED parts are marked as USED, parts not marked as USED are new.

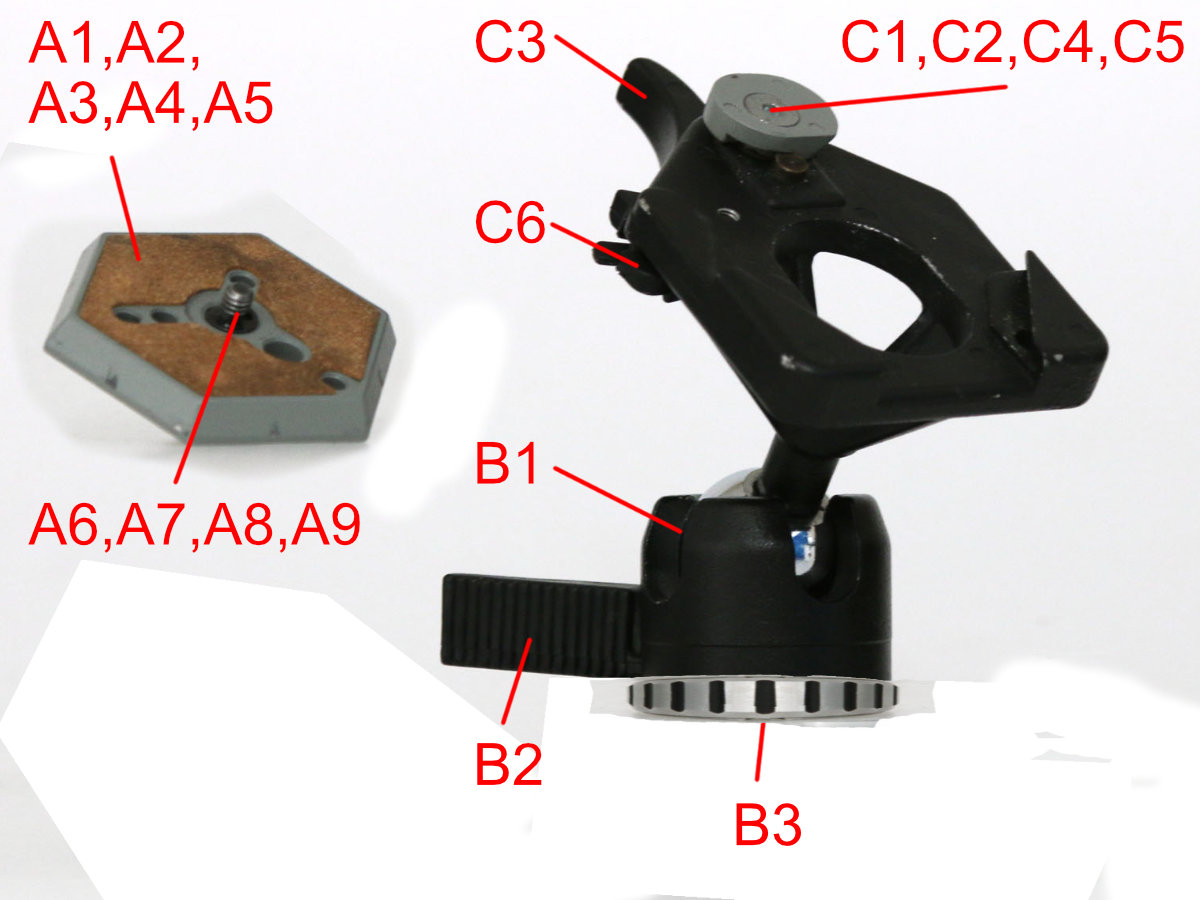

A1 1/4 Quick Release Plate
A2 3/8 Quick Release Plate
A3 1/4 Architectural Quick Release Plate
A4 1/4 Video Quick Release Plate
A5 1/4 Low Profile Quick Release Plate
A5 3/8 Low Profile Quick Release Plate
A6 1/4 QR Replacement Screw
A7 3/8 QR Replacement Screw
A8 1/4 Low Profile Flat Bottom Screw
A9 3/8 Low Profile Flat Bottom Screw
B1 QR Receiver & Ball Assy
B2 USED Ball Locking Lever
B3 Ball Locking Cam
C1 USED QR Locking Cam
C2 QR Return Spring
C3 USED QR Thumb Lever
C4 USED QR Locking Pin
C5 USED QR Pivot Screw
C6 QR Safety Latch
Editors Notes: 168 and 168WOB mostly interchangeable. 168 Version 5 which has a QR safety latch C6 added to the unit as in 168WOB. 168WOB does not have a separate Pan or Locking assembly shown as D parts. We do not have any information or parts lists for any other Versions. Please check parts carefully for match before ordering.
